Ever wired up a solar panel and felt a pang of doubt about your connections? You’re not alone. Getting those MC4 connectors just right is crucial for a safe and efficient solar setup. But with so many crimping tools out there, how do you pick the one that won’t let you down?
Choosing the wrong MC4 crimping tool can lead to loose connections, potential fire hazards, and wasted time fiddling with tricky fittings. It’s frustrating when a simple step becomes a major roadblock in your DIY solar project. You want a tool that feels good in your hand, works reliably, and makes those secure connections with ease.
This post is your guide to navigating the world of MC4 connector crimping tools. We’ll break down what makes a good tool and highlight key features to look for. By the end, you’ll have the confidence to pick the perfect crimper for your needs, ensuring your solar projects are both safe and successful.

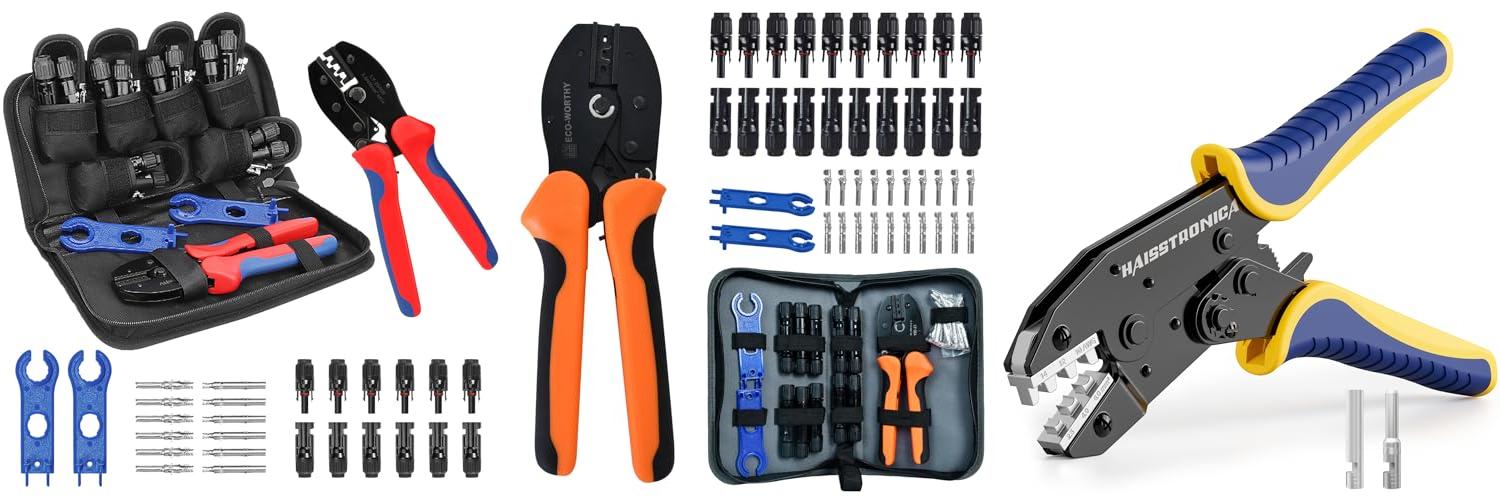

Our Top 5 Mc4 Connector Crimping Tool Recommendations at a Glance
Top 5 Mc4 Connector Crimping Tool Detailed Reviews
1. BougeRV Solar Crimper Tool Kit – Crimper
Rating: 8.6/10
The BougeRV Solar Crimper Tool Kit is a complete package for anyone looking to set up or work with solar panels. This kit makes connecting solar cables simple and accurate. It has everything you need to get the job done right, from crimping the wires to tightening the connections.
What We Like:
- It’s a complete kit, so you don’t need to buy extra parts.
- The crimper is designed for accuracy. It ensures a good connection every time you use it.
- It works with different wire sizes (2.5/4/6 mm²), which is very handy.
- The handles are designed for comfort and make crimping easier.
- The kit includes extra connectors and a spanner wrench. This means you have spares and the right tool for tightening.
What Could Be Improved:
- The instructions could be clearer for beginners.
- While durable, the plastic case for the kit feels a bit flimsy.
This BougeRV tool kit is a solid choice for solar panel projects. It provides the essential tools for reliable connections.
2. ECO-WORTHY Solar Crimper Tool Kit 13 PCS Solar Tools – a Crimper
Rating: 9.4/10
Tackling solar panel installations just got a whole lot easier with the ECO-WORTHY Solar Crimper Tool Kit. This 13-piece set provides everything you need to assemble and install solar panel cables, making it a fantastic addition to any DIYer’s toolkit.
What We Like:
- Comprehensive Kit: It includes a high-quality wire crimper, 10 pairs of solar connectors, and 2 pairs of spanner wrenches, plus a durable zipper case to keep everything organized.
- Sturdy Construction: The crimper is made from high-carbon steel with a comfortable PP+TTR handle and precise jaws for reliable connections.
- Effortless Installation: The included spanner wrenches make connecting solar connectors much easier and faster.
- Versatile Connectors: The 10 pairs of connectors are crafted from PPO material and come with crimp terminals, fitting most standard solar cables.
- User-Friendly Design: The tools are ergonomically designed for comfortable and easy use, even for extended periods.
What Could Be Improved:
- Connector Quantity: While 10 pairs are provided, some larger projects might require more connectors.
- Spanner Design: The spanners are functional, but a slightly longer handle might offer even more leverage for certain connections.
This ECO-WORTHY kit simplifies solar cable assembly. It’s a well-rounded and practical solution for anyone working with solar power systems.
3. haisstronica Crimping Tool for Solar Connectors – AWG 14 12 10 Ratchet Wire Crimper Tool
Rating: 9.5/10
Building your own solar power system? You need the right tools. The haisstronica Crimping Tool for Solar Connectors is designed specifically for solar photovoltaic (PV) systems. It handles common wire sizes: AWG 14, 12, and 10. This tool makes sure your solar connections are secure and reliable.
What We Like:
- It works perfectly with the special connectors and cables used in solar power projects.
- It fits wire sizes AWG 14, AWG 12, and AWG 10, which are common for solar setups.
- The tool has a smooth ratcheting action. This means you get a solid crimp every time.
- The crimps are described as being as strong as solder, making your equipment safer.
- Its precision-engineered dies create a perfect crimp on the first try.
- The ergonomic handle has a non-slip grip. It feels comfortable in your hand, even when you need to use a lot of force.
- The company offers a 30-day money-back guarantee and a 12-month replacement warranty. This gives you peace of mind when buying.
What Could Be Improved:
- The product description doesn’t mention if it comes with different dies for other types of solar connectors.
This haisstronica crimping tool is a solid choice for anyone working on solar projects. It focuses on making secure connections easy and reliable.
4. Klein Tools 3010CR MC4 Solar Ratcheting Crimper for 10-14 AWG Stranded Copper Wire PV Connectors
Rating: 8.7/10
If you’re working with solar panels, you need the right tools. The Klein Tools 3010CR MC4 Solar Ratcheting Crimper is built for the job. It helps you make strong connections on your solar wiring. This tool is designed for 10 to 14 gauge stranded copper wire, which is common in solar installations. It’s made by Klein Tools, a brand known for quality tools.
What We Like:
- It crimps MC4 style pins onto 10-14 AWG stranded copper wire.
- The adjustable compound action makes crimping easier.
- A built-in ratchet ensures a full and even crimp every time.
- You can manually adjust the crimping force with a dial.
- The molded handles have soft grips for comfort.
- It has multiple cavities for 10, 12, and 14 AWG wire.
- The tool provides uniform crimps from both sides.
What Could Be Improved:
- The ratchet mechanism can sometimes be a little stiff at first.
- It’s specifically for MC4 connectors, so it won’t work for other types.
This Klein Tools crimper is a solid choice for anyone setting up or working on solar power systems. It makes creating reliable connections simple and consistent.
5. iCrimp Solar PV Cable Crimping Tool for IWS4 Solar Connectors
Rating: 8.8/10
If you’re working with solar power systems, you need the right tools. The iCrimp Solar PV Cable Crimping Tool is designed specifically for IWS4 Solar Connectors. It handles wires from AWG 14 to 10, which is about 2.5mm², 4mm², and 6mm². This tool makes connecting solar cables a breeze.
What We Like:
- It’s built tough with hardened steel, so it will last a long time.
- Using it is simple. You just put the wire in and squeeze the handles.
- The tool makes it easier to crimp wires. This means less strain on your hands.
- It has special molds that ensure a good crimp every time you use it.
- It’s easy to carry around. The handles fit your hand well and it doesn’t weigh much.
- The design follows how people naturally use their hands, making it comfortable.
- It gives a perfect crimp, so your connections will be secure.
What Could Be Improved:
- While the tool is great for its purpose, it’s made for a specific type of connector (IWS4).
- For those new to solar wiring, there might be a slight learning curve to get the absolute perfect crimp on the first try.
This iCrimp crimping tool is a solid choice for anyone serious about solar installations. It delivers quality and ease of use where it matters most.
Your Guide to the Best MC4 Connector Crimping Tool
Why You Need an MC4 Crimping Tool
If you’re working with solar panels, you’ll need to connect them securely. MC4 connectors are the standard for solar panel wiring. You need a special tool, an MC4 crimping tool, to make these connections properly. A good crimping tool ensures a strong, reliable connection that won’t come loose, even in harsh weather. This guide will help you find the best tool for your needs.
Key Features to Look For
When you’re shopping for an MC4 crimping tool, keep these important features in mind:
Proper Crimp Size
- The tool must be designed specifically for MC4 connectors.
- It should create a tight, secure crimp on the wire and the connector pin.
- A poor crimp can lead to voltage drop or a connection that fails.
Ergonomic Design
- Look for tools with comfortable, non-slip grips.
- This makes the tool easier to use, especially if you have many connections to make.
- Good grips reduce hand fatigue.
Durable Construction
- The tool should be made from strong materials.
- It needs to withstand repeated use and the demands of outdoor work.
- A well-built tool lasts longer.
Ratchet Mechanism
- Many good crimping tools have a ratchet.
- This mechanism ensures that the crimp is completed fully.
- It prevents you from under-crimping or over-crimping.
Wire Stripper and Cutter
- Some tools include a wire stripper and cutter.
- This adds convenience by combining multiple tools into one.
- It saves you from carrying extra tools.
Important Materials
The materials used in an MC4 crimping tool greatly affect its performance and lifespan.
Steel Construction
- High-quality steel is essential for the crimping jaws.
- This provides strength and durability.
- Hardened steel resists wear and tear.
Plastic or Rubber Grips
- Comfortable grips are usually made from plastic or rubber.
- These materials offer a good grip and absorb some of the force.
- They make the tool more pleasant to use.
Factors That Improve or Reduce Quality
Several things can make an MC4 crimping tool better or worse.
Precision Engineering
- Tools that are precisely engineered create a perfect crimp every time.
- This means the connector is properly seated on the wire.
- Precision reduces the chance of faulty connections.
Brand Reputation
- Established brands often have a reputation for quality.
- They usually stand behind their products with warranties.
- Researching brands can give you an idea of reliability.
Cost vs. Value
- Very cheap tools might not be built to last.
- They might not provide a reliable crimp.
- Investing a little more can save you problems down the road.
User Experience and Use Cases
Using an MC4 crimping tool is straightforward once you know how.
How to Use It
- Strip the end of your solar wire to the correct length.
- Insert the stripped wire into the MC4 connector pin.
- Place the pin with the wire into the correct slot on the crimping tool.
- Squeeze the tool’s handles firmly until the ratchet releases.
- This creates a secure connection.
Common Use Cases
- DIY Solar Projects: When you’re setting up your own solar power system at home.
- Solar Panel Installation: Professional installers use these tools daily.
- Repairing Solar Cables: If a solar cable needs to be replaced or repaired.
- Connecting Extension Cables: Making custom-length solar extension cables.
Frequently Asked Questions (FAQ)
Q: What is the main purpose of an MC4 crimping tool?
A: Its main purpose is to securely attach MC4 connector pins to solar panel wires, ensuring a strong electrical connection.
Q: Can I use regular pliers to crimp MC4 connectors?
A: No, regular pliers will not create the proper crimp needed for MC4 connectors. A specialized tool is required for a safe and reliable connection.
Q: How do I know if I have the right size crimping tool for MC4 connectors?
A: An MC4 crimping tool is specifically designed for the MC4 connector size. It will usually be labeled as such, and the jaws will match the connector pins.
Q: What is a ratchet mechanism on a crimping tool?
A: A ratchet mechanism ensures that the crimping process is completed fully. It prevents you from stopping the crimp halfway, which could result in a weak connection.
Q: Are there different sizes of MC4 connectors?
A: While MC4 is a standard, there can be slight variations in wire gauge compatibility. Ensure your tool is rated for the wire gauge you are using.
Q: How important is the material of the crimping jaws?
A: The material of the jaws is very important. Hardened steel jaws provide durability and ensure a precise, strong crimp that lasts.
Q: Can an MC4 crimping tool also strip wires?
A: Some MC4 crimping tools have a built-in wire stripper. This feature adds convenience by combining two tools into one.
Q: How do I avoid damaging the MC4 connector or wire during crimping?
A: Use the correct tool for the job, ensure the wire is stripped to the proper length, and place the connector pin correctly in the tool jaws before crimping.
Q: Where can I buy a good MC4 crimping tool?
A: You can find them at electrical supply stores, online retailers like Amazon, and specialized solar equipment suppliers.
Q: What should I do if my crimp doesn’t feel secure?
A: If a crimp doesn’t feel secure, do not use it. Try crimping it again with the tool, ensuring proper alignment. If it still feels loose, the connector or the tool might be faulty.
In conclusion, every product has unique features and benefits. We hope this review helps you decide if it meets your needs. An informed choice ensures the best experience.
If you have any questions or feedback, please share them in the comments. Your input helps everyone. Thank you for reading.
